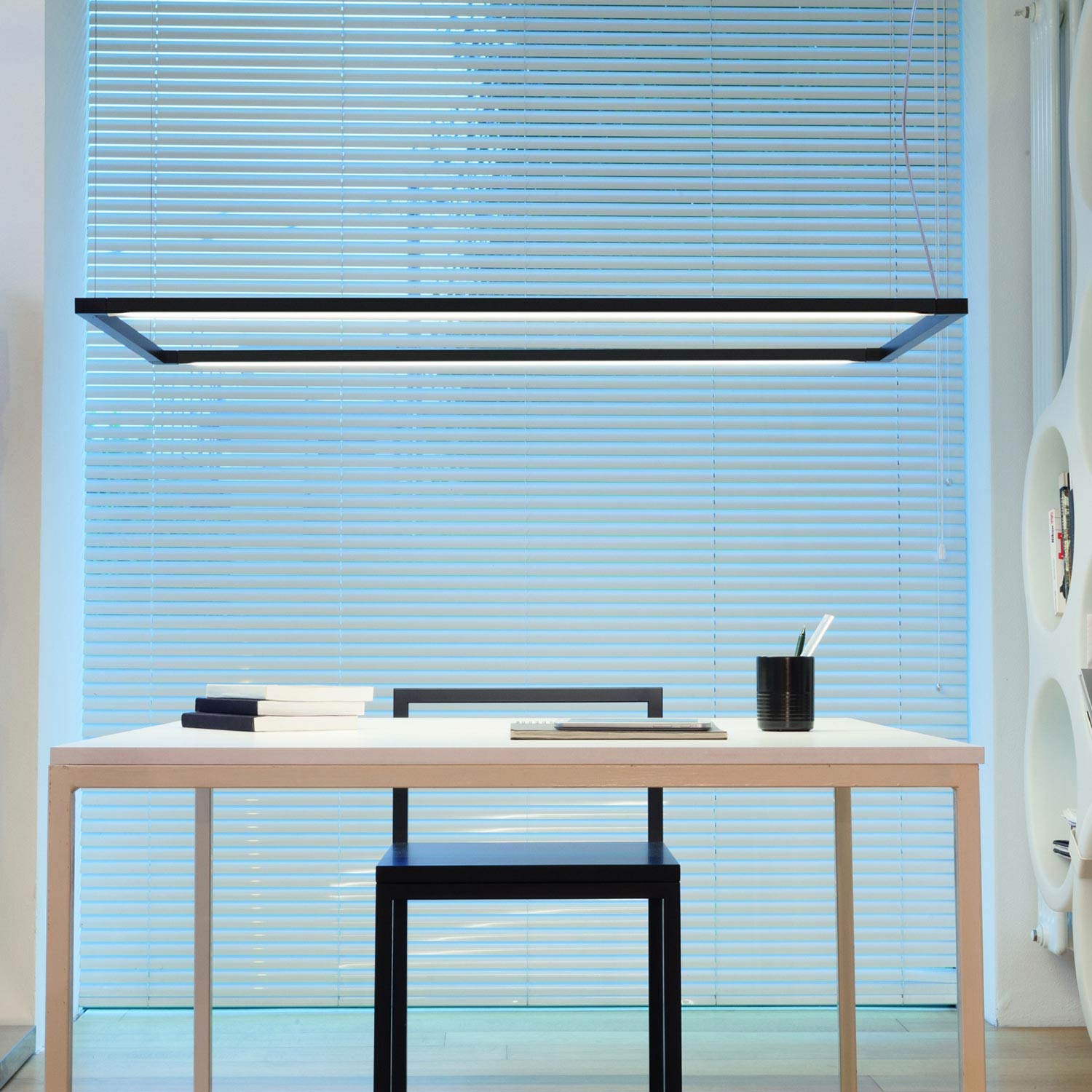

SPIGOLO PENDANT HORIZONTAL

Pendant lamp based on an extruded and tubular aluminum structure, connected with molded polymer joints, with white or black painted finish. Thanks to the joints, enabling the profiles to house LED sources, one can rotate 360° in order to produce a directional direct or indirect lighting, screened by an opaline diffuser in polycarbonate. Allows the enlightenment of the ambience in a versatile and a comfortable way. LED sources are dimmable.

Technical drawing

11.4 22.8 44.9 360° 360° 2 2

Versions

  • LED 2700K
    2xlinear LED24 + 24W850 + 850lm (luminous output)double, diffused2700Kmono switch, dimmable 1-10V120V
    85A+2044.9 x 22.8 x 0.8cable length 16.4' max, metal cable length 9.8',orientable diffusers 360°, DALI version on request, decentralized canopyaluminium + PC + ABSCode/ColorSPI LWW 53 whiteCode/ColorSPI LNN 53 black
  • LED 3000K
    2xlinear LED24 + 24W850 + 850lm (luminous output)double, diffused3000Kmono switch, dimmable 1-10V120V
    85A+2044.9 x 22.8 x 0.8cable length 16.4' max, metal cable length 9.8',orientable diffusers 360°, DALI version on request, decentralized canopyaluminium + PC + ABSCode/ColorSPI LWW 51 whiteCode/ColorSPI LNN 51 black

Family

SPIGOLO FLOORStudiocharlieDiscover

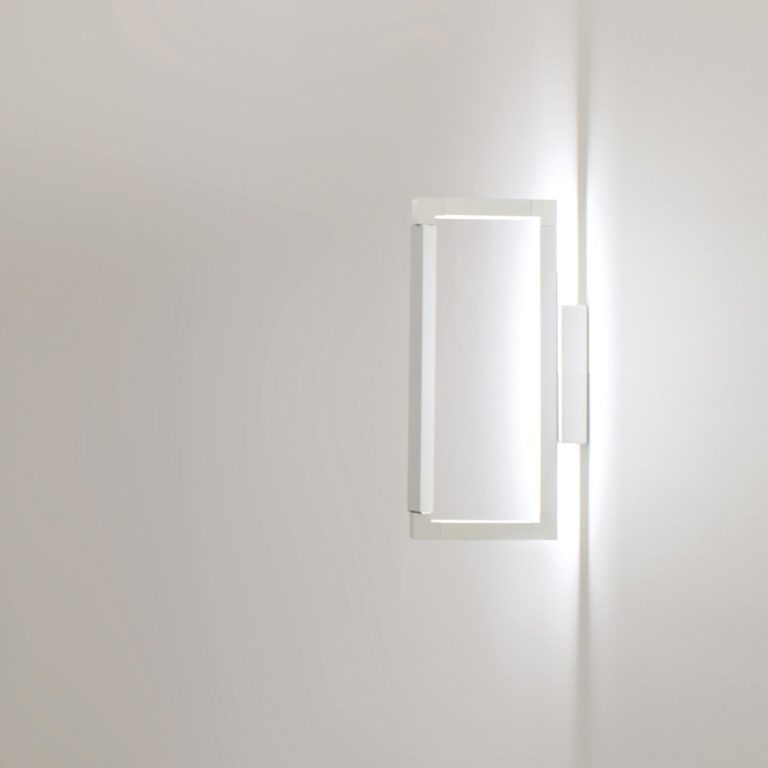

SPIGOLO WALL CEILINGStudiocharlieDiscover
SPIGOLO PENDANT VERTICALStudiocharlieDiscover
Projects

Studiocharlie

Discover
